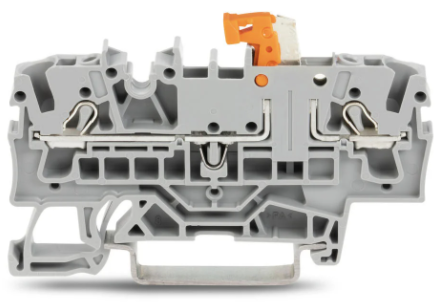

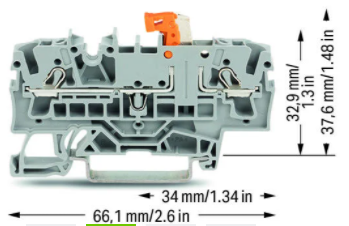

WA 2002-1671

Connection technology

Push-in CAGE CLAMP^®

Actuation type

Push-in
Open Tool Slot

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm²

Solid conductor

0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination

0.75 … 4 mm² / 18 … 12 AWG

Fine-stranded conductor

0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with insulated ferrule

1 … 2.5 mm² / 18 … 14 AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5 mm² / 18 … 14 AWG

Strip length

10 … 12 mm / 0.39 … 0.47 inch

Total number of connection points

2

Total number of potentials

2

Number of levels

1

Wiring type

Front-entry wiring

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Number of jumper slots

2
