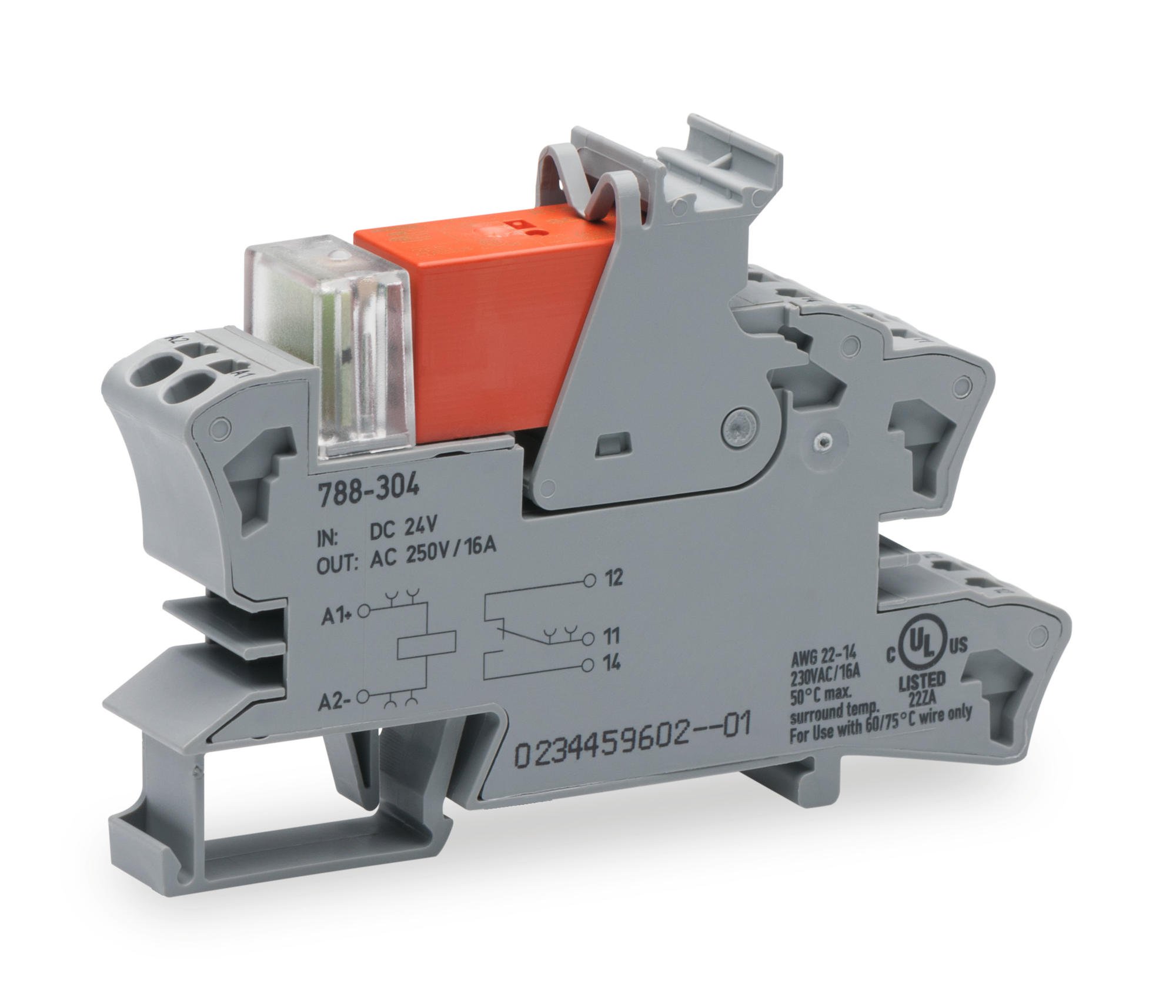

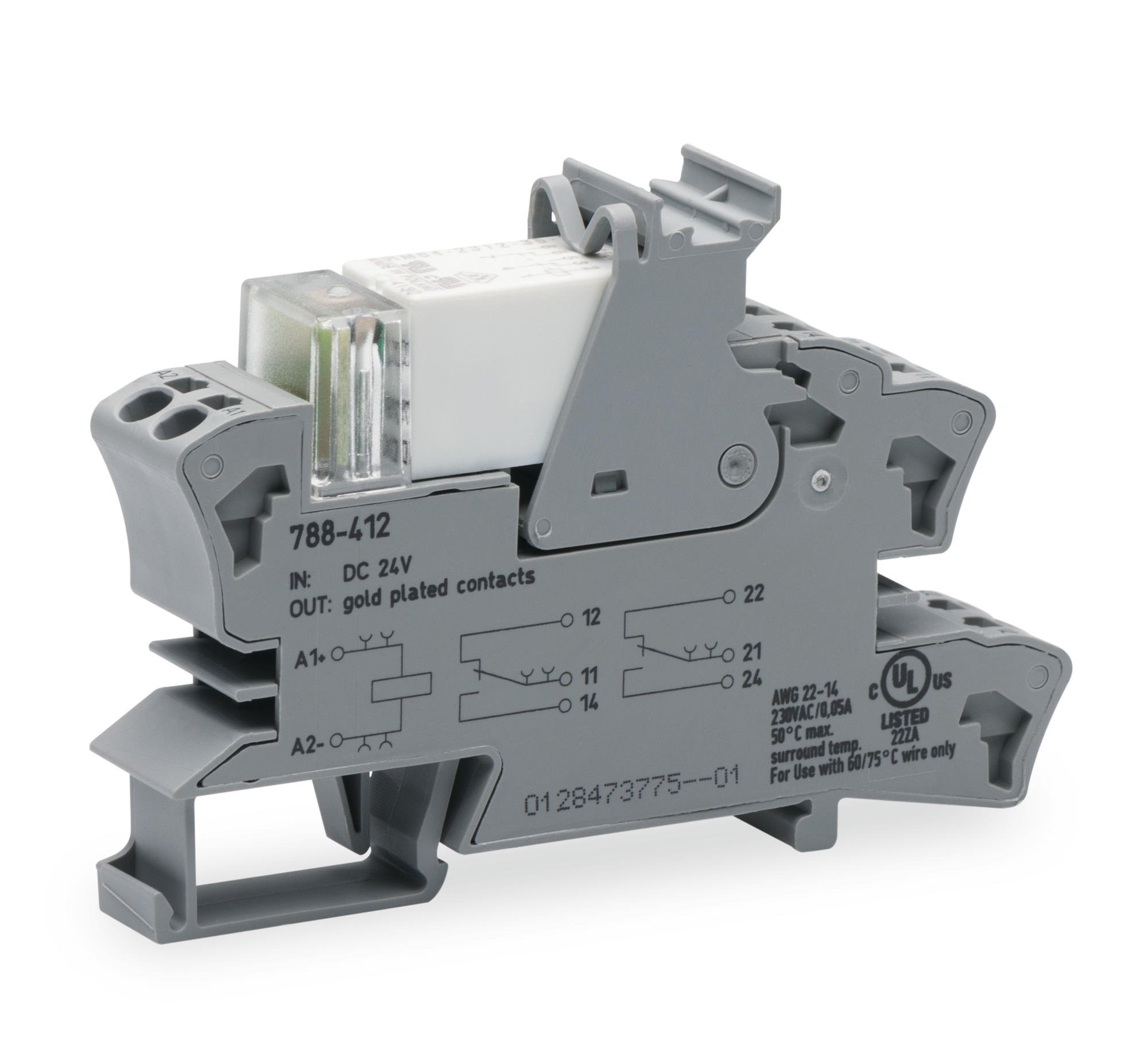

Relay module,
1 changeover contact,
max. continuous current : 16 A,
red status indicator, 15 mm wide |
Relay module,
1 changeover contact,
max. continuous current : 16 A,
with gold contacts,
yellow status indicator, 15 mm wide |
| Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
| 12 VDC |
36 mA |
788-303 |
20 |
24 VDC |
19.1 mA |
788-404 |
20 |
| 24 VDC |
19.1 mA |
788-304 |
20 |
|
| 48 VDC |
11 mA |
788-305 |
20 |
| 60 VDC |
10.5 mA |
788-106 |
20 |
| 110 VDC |
6 mA |
788-307 |
20 |
| Specific Technical Data |
|
| Contacts |
| Contact material |
AgNi 90/10 |
AgNi + Au |
| Max. continuous current |
16 A |
16 A |
| Max. make current (resistive) |
4 s (AC) 30 A |
|
| Recommended minimum load |
12 VDC / 10 mA |
5 V / 2 mA / 50 mW |
| Pull-in/drop-out/bounce time typ. |
8 ms / 6 ms / 6 ms |
7 ms / 3 ms / - |
| General Specifications |
|
|
| Standards/approvals |
EN 61010-2-201;EN 61373;EN 61810-1;
UL 508 (max. 10 A)
(788-307:UL 508,max. 40 °C/10 A) |
EN 61010-2-201;EN 61373;EN 61810-1;
UL 508 |
| |
Relay module,
1 changeover contact,
max. continuous current : 8 A,
red status indicator, 15 mm wide |
Relay module,
1 changeover contact,
max. continuous current : 8 A,
with gold contacts,
yellow status indicator, 15 mm wide |
| Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
| 12 VDC |
36 mA |
788-311 |
20 |
24 VDC |
17 mA |
788-412 |
20 |
| 24 VDC |
19.1 mA |
788-312 |
20 |
|
| 48 VDC |
11 mA |
788-313 |
20 |
| 60 VDC |
10.5 mA |
788-314 |
20 |
| 110 VDC |
6 mA |
788-315 |
20 |
| Specific Technical Data |
|
| Contacts |
| Contact material |
AgNi 90/10 |
AgNi + Au |
| Max. continuous current |
8:00 AM |
8:00 AM |
| Max. make current (resistive) |
15 A / 4 s (AC) |
|
| Recommended minimum load |
12 VDC / 10 mA |
5 V / 2 mA / 50 mW |
| Pull-in/drop-out/bounce time typ. |
8 ms / 6 ms / 6 ms |
7 ms / 3 ms / - |
| General Specifications |
|
|
| Standards/approvals |
EN 61010-2-201;EN 61810-1;EN 61373;
UL 508
(788-315:UL 508,max. 40 °C) |
EN 61010-2-201;EN 61810-1;EN 61373
UL 508 |
| |

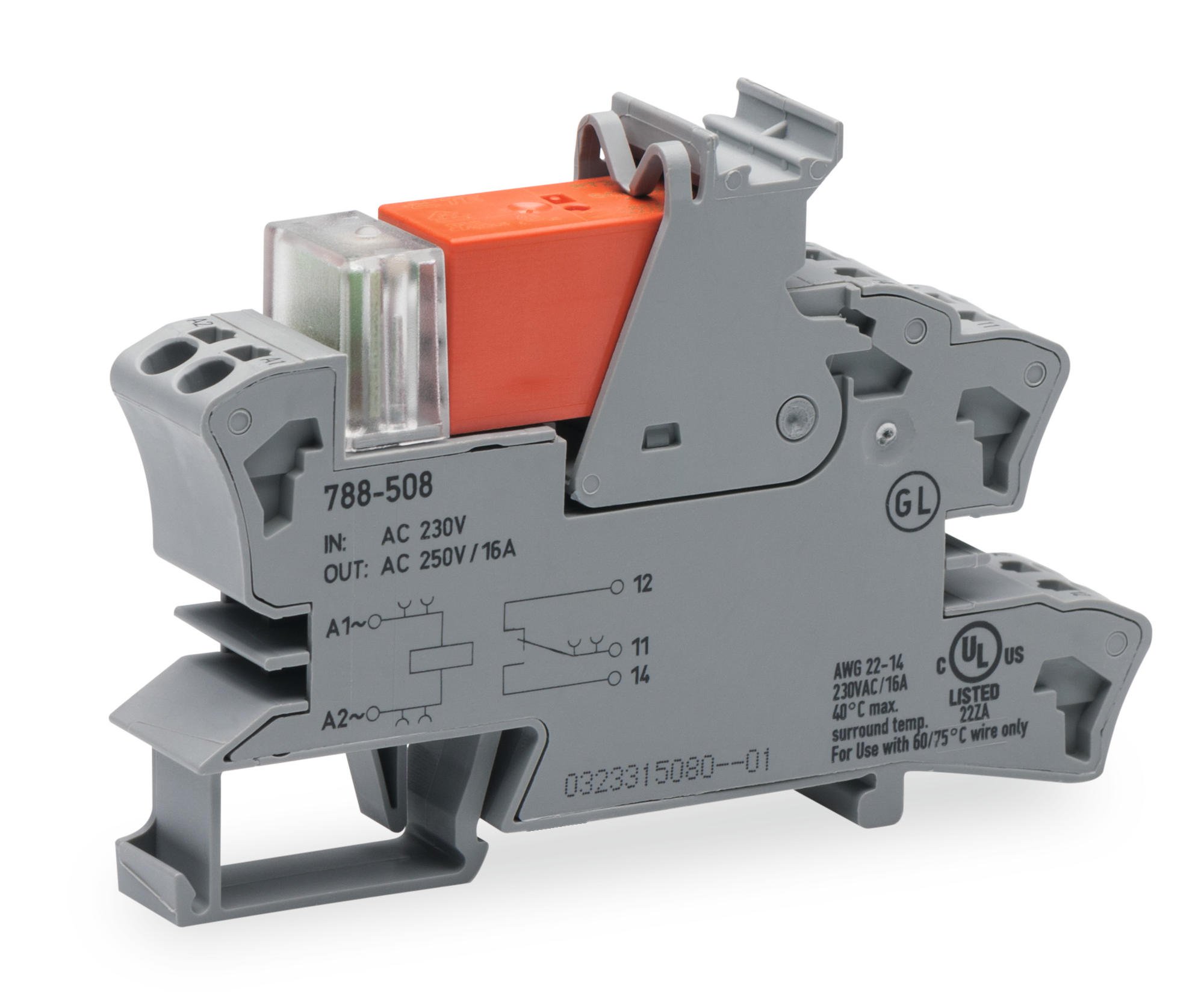

Relay module,
1 changeover contact,
max. continuous current : 16 A,
red status indicator, 15 mm wide |
Relay module,
1 changeover contact,
max. continuous current : 16 A,
with gold contacts,
yellow status indicator, 15 mm wide |
| Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
| 24 VAC |
34 mA |
788-506 |
20 |
115 VAC |
8.2 mA |
788-607 |
20 |
| 115 VAC |
8 mA |
788-507 |
20 |
230 VAC |
5 mA |
788-608 |
20 |
| 230 VAC |
3.5 mA |
788-508 |
20 |
|
|
|
|
| |
| Specific Technical Data |
| Contacts |
| Contact material |
AgNi 90/10 |
AgNi + Au |
| Max. continuous current |
16 A |
16 A |
| Max. make current (resistive) |
4 s (AC) 30 A |
|
| Recommended minimum load |
12 VDC / 10 mA |
5 V / 2 mA / 50 mW |
| Pull-in/drop-out/bounce time typ. |
8 ms / 6 ms / 6 ms |
7 ms / 3 ms / - |
| General Specifications |
|
|
| Standards/approvals |
EN 61010-2-201;EN 61810-
1;EN 61373;
GL;UL 508
(788-307,788-508:UL 508,max. 40 °C/10 A) |
EN 61010-2-201;EN 61810-1;EN 61373;
UL 508 |
| |
Relay module,
1 changeover contact,
max. continuous current : 8 A,
red status indicator, 15 mm wide |
Relay module,
1 changeover contact,
max. continuous current : 8 A,
with gold contacts,
yellow status indicator, 15 mm wide |
| Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
Uₙ |
Iₙ |
Item NO. |
Pack.Unit |
| 24 VAC |
34 mA |
788-512 |
20 |
115 VAC |
8.2 mA |
788-615 |
20 |
| 115 VAC |
8 mA |
788-515 |
20 |
230 VAC |
5 mA |
788-616 |
20 |
| 230 VAC |
3.5 mA |
788-516 |
20 |
|
| |
| Specific Technical Data |
| Contacts |
| Contact material |
AgNi 90/10 |
AgNi + Au |
| Max. continuous current |
8 A |
8 A |
| Max. make current (resistive) |
15 A / 4 s (AC) |
|
| Recommended minimum load |
12 VDC / 10 mA |
5 V / 2 mA / 50 mW |
| Pull-in/drop-out/bounce time typ. |
8 ms / 6 ms / 6 ms |
7 ms / 3 ms / - |
| General Specifications |
|
|
| Standards/approvals |
EN 61010-2-201;EN 61810-1;EN 61373;
GL;UL 508 |
EN 61010-2-201;EN 61810-1;EN 61373;
UL 508 |
|
