Type	Setting range		Switching differential (mean values)		Max. Permissible pressure		Materials in- contact with medium	Dimen- sioned drawing
Switching differential not adjustable								page 25+26
DCM4016	1…16	mbar	2	mbar	1	bar	Perbunan +1.4301	1+11
DCM4025	4…25	mbar	2	mbar	1	bar	Perbunan +1.4301	1+11
DCM1000	10…100	mbar	12	mbar	10	bar	Perb+MS	1+10
DCM025	0.04…0.25	bar	0.03	bar	6	bar	Cu+Ms	1+14
DCM06	0.1…0,6	bar	0.04	bar	6	bar	Cu+Ms
DCM1	0.2…1,6	bar	0.04	bar	6	bar	Cu+Ms
DNM025	0.04…0.25	bar	0.03	bar	6	bar	Sensor housing 1.4104 + Pressure bellow 1.4571	1+15
DCM506	15…60	mbar	10	mbar	12	bar		1+12
DCM3	0.2…2.5	bar	0.1	bar	16	bar		1+18
DCM6	0.5…6	bar	0.15	bar	16	bar		1+18
DCM625	0.5…6	bar	0.25	bar	25	bar		1+17
DCM10	1…10	bar	0.3	bar	25	bar
DCM16	3…16	bar	0.5	bar	25	bar
DCM25	4…25	bar	1	bar	60	bar		1+16
DCM40	8…40	bar	1.3	bar	60	bar
DCM63	16…63	bar	2	bar	130	bar

DCMV025	0.04…0.25	bar	0.03…0.4	bar	6	bar	Cu+Ms	1+14
DCMV06	0.1…0.6	bar	0.04…0.5	bar	6	bar
DCMV1	0.2…1.6	bar	0.07…0.55	bar	6	bar
DCMV3	0.2…2.5	bar	0.15…1.5	bar	16	bar	Sensor housing 1.4104 + Pressure bellow 1.4571	1+18
DCMV6	0.5…6	bar	0.25…2.0	bar	16	bar		1+18
DCMV625	0.5…6	bar	0.25…2.0	bar	25	bar		1+17
DCMV10	1…10	bar	0.5…2.8	bar	25	bar
DCMV16	3…16	bar	0.7…3.5	bar	25	bar
DCMV25	4…25	bar	1.3…6.0	bar	60	bar		1+16
DCMV40	8…40	bar	2.6…6.6	bar	60	bar
DCMV63	16…63	bar	3.0…10	bar	130	bar

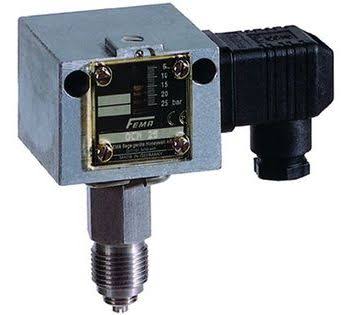

Pressure Switch Series DCM/DCMV
