Number of digital outputs	2
Total number of channels (module)	2
Actuator connection	2 x (1-conductor)
Output switching design	2 make contacts relay
Output characteristic	potential-free
Switching frequency max.	0.5 Hz; Nennlast
Switching frequency max.	0.5 Hz
Load type of the switching frequency	Nennlast
Switching voltage (max.)	AC 250 V, DC 30 V V
Switching current max.	2 A
Switching voltage (min.)	5 V
Switching current (min.)	10 mA
Switching power	500 VA / 60 W; cos ϕ max. = 0.4; L/R max. = 7 ms
Pull-in time (max.)	10 ms
Drop-out time (max.)	10 ms
Bounce time (typ.)	1.2 ms
Schaltspiele elektrisch min. (bei max. ohmscher Last)	3 x 105
Schaltspiele mechanisch min. (bei max. ohmscher Last)	20 x 106
Max output data width (internal)	2 Bit
System supply voltage	DC 5 V); via data contacts
Current consumption, system supply (5 V)	100 mA
System and sensor supply voltage	)
Isolation field – system	1500 VAC (1 min)

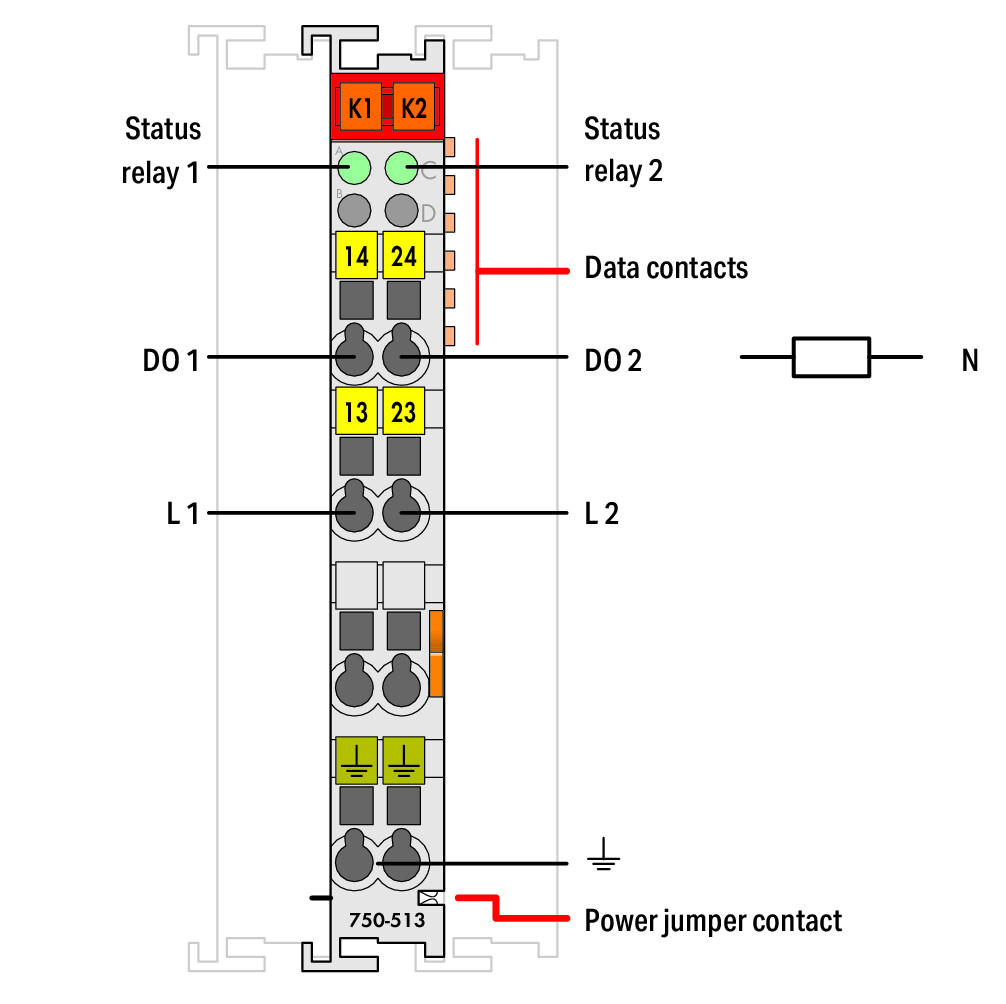

Indicators	LED (A, C) green: Status relay 1, relay 2
Number of incoming power jumper contacts	1
Number of outgoing power jumper contacts	1
Current carrying capacity of the power jumper contacts	10 A

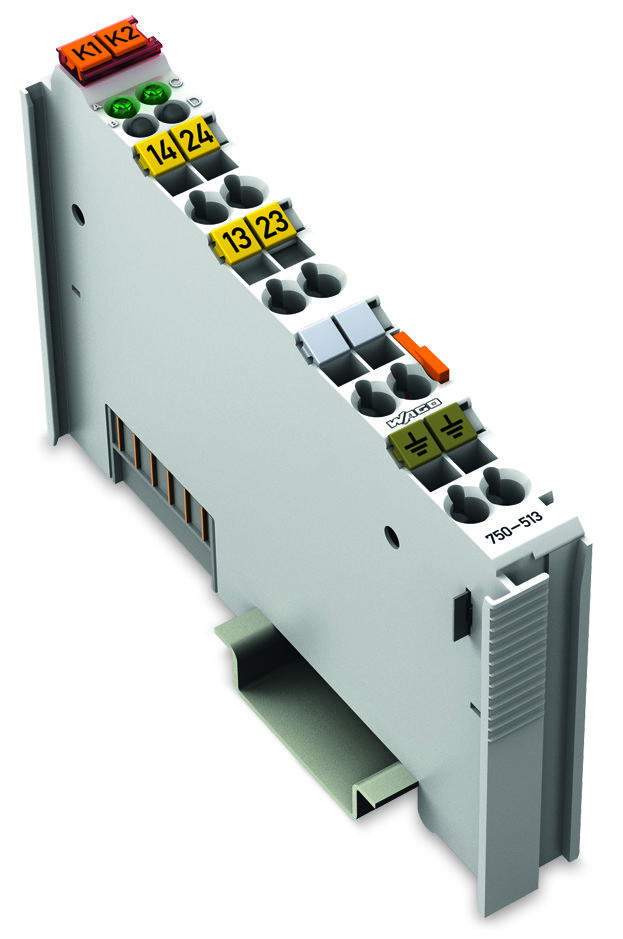

WAGO 750-513
